步骤

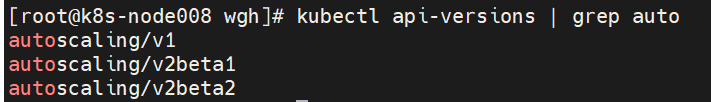

我的环境k8s版本为v1.20.11，hpa的api版本没有autoscaling/v2，配置behavior需要使用autoscaling/v2beta2。
部署测试服务
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest
imagePullPolicy: IfNotPresent
resources:
requests:
cpu: 200m
limits:
cpu: 500m
---
apiVersion: v1
kind: Service
metadata:
labels:
app: nginx
name: nginx
spec:
ports:
- name: 80-80
port: 80
protocol: TCP
targetPort: 80
selector:
app: nginx
type: ClusterIP
创建hpa
apiVersion: autoscaling/v2beta2
kind: HorizontalPodAutoscaler
metadata:
name: nginx-hpa
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: nginx
minReplicas: 1 # 最小副本数
maxReplicas: 5 # 最大副本数
behavior:
scaleUp:
stabilizationWindowSeconds: 30 # 扩容决策稳定窗口，这意味着 HPA 在决定扩容时，会参考过去30s的指标数据，允许快速响应负载增加。
policies:
- type: Pods
value: 2 # 每次扩容最多增加 2 个副本
periodSeconds: 30
scaleDown: # 禁用自动缩容
#stabilizationWindowSeconds: 3600
#policies:
#- type: Pods
# value: 1
# periodSeconds: 1800
selectPolicy: Disabled
metrics:
- type: Resource
resource:
name: cpu
target:
type: Utilization
averageUtilization: 80
创建压测pod
kubectl run -it --rm load-generator --image=busybox --restart=Never -- /bin/sh -c "while true; do wget -q -O- http://nginx-service; done"观察扩容

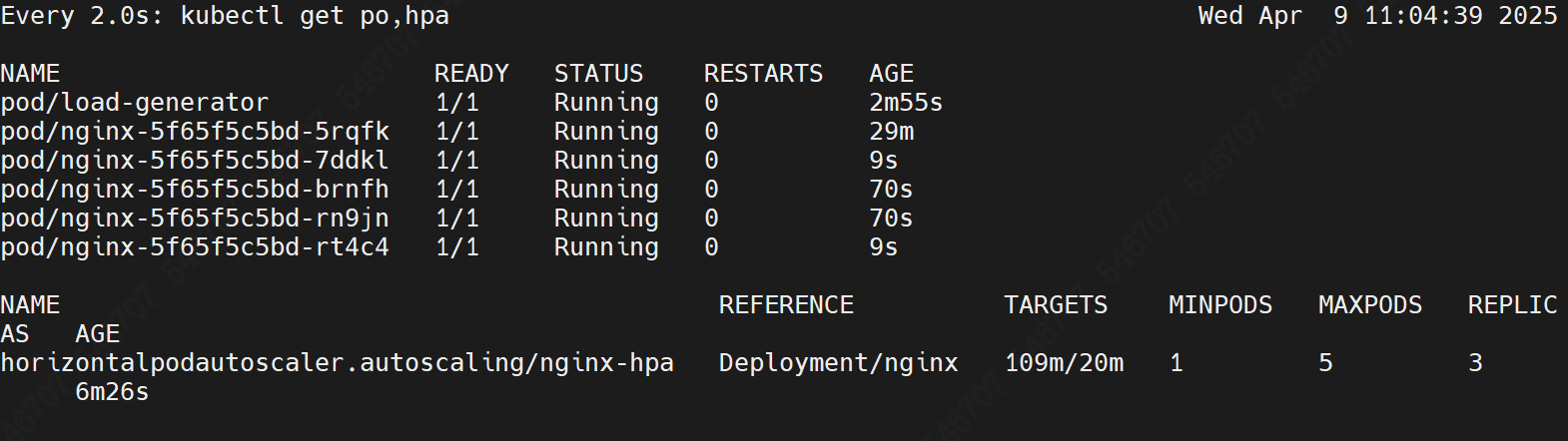

watch kubectl get hpa,pods

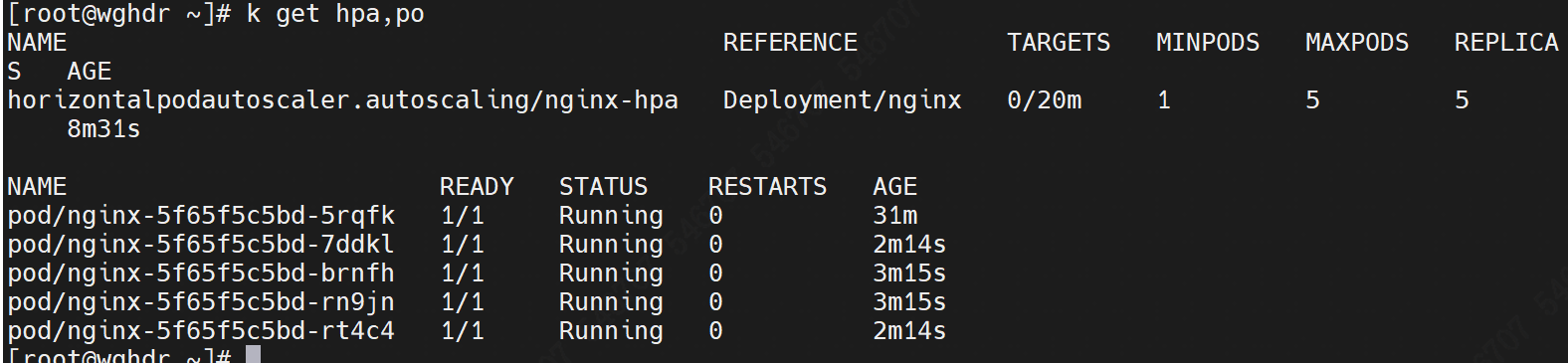

pod没有被自动删除。
扩容时和扩容完成时发送消息到钉钉。代码用go实现，文档地址：https://pkg.go.dev/k8s.io/api/autoscaling/v2@v0.32.3
package main
import (
"bytes"
"context"
"crypto/hmac"
"crypto/sha256"
"encoding/base64"
"encoding/json"
"fmt"
"k8s.io/client-go/tools/clientcmd"
"net/http"
"net/url"
"time"
autoscalingv2 "k8s.io/api/autoscaling/v2"
"k8s.io/apimachinery/pkg/apis/meta/v1"
"k8s.io/client-go/kubernetes"
)
const (
dingdingWebhook = "https://oapi.dingtalk.com/robot/send?access_token=5e53ec。。。"
dingdingSecret = "SEC6d95dc。。。"
)
var (
lastScaleEvent = make(map[string]time.Time) // 用于事件去重
)
// 钉钉消息结构
type DingdingMsg struct {
Msgtype string `json:"msgtype"`
Text struct {
Content string `json:"content"`
} `json:"text"`
}
func main() {
var kubeConfig = "/root/.kube/config"
// 初始化 Kubernetes 客户端
config, err := clientcmd.BuildConfigFromFlags("", kubeConfig)
if err != nil {
panic(err.Error())
}
clientset, err := kubernetes.NewForConfig(config)
if err != nil {
panic(err.Error())
}
// 监听所有命名空间的 HPA 事件
hpaWatcher, err := clientset.AutoscalingV2().HorizontalPodAutoscalers("").Watch(context.TODO(), v1.ListOptions{})
if err != nil {
panic(err.Error())
}
// 事件处理循环
for {
select {
case event := <-hpaWatcher.ResultChan():
if event.Object == nil {
continue
}
hpa, ok := event.Object.(*autoscalingv2.HorizontalPodAutoscaler)
if !ok {
continue
}
handleHPAEvent(hpa)
case <-time.After(30 * time.Second):
// 定期清理旧事件
cleanupOldEvents()
}
}
}
func handleHPAEvent(hpa *autoscalingv2.HorizontalPodAutoscaler) {
key := fmt.Sprintf("%s/%s", hpa.Namespace, hpa.Name)
// 只处理更新时间戳在 30 秒内的事件
if time.Since(lastScaleEvent[key]) < 30*time.Second {
return
}
// 检查扩容条件
currentReplicas := hpa.Status.CurrentReplicas
desiredReplicas := hpa.Status.DesiredReplicas
if desiredReplicas > currentReplicas {
msg := fmt.Sprintf("HPA 扩容触发:\n"+
"服务: %s/%s\n"+
"当前副本数: %d\n"+
"目标副本数: %d\n"+
"触发条件: %s\n"+
"%s\n"+
"时间: %s",
hpa.Namespace, hpa.Name,
currentReplicas,
desiredReplicas,
getTriggerConditions(hpa),
getMetricsDetails(hpa),
time.Now().Format("2006-01-02 15:04:05"))
//fmt.Println("HPA检测情况:", msg)
sendDingdingMessage(msg, "hpa扩容开始")
// 启动异步检查扩容完成状态
go checkScalingCompletion(hpa)
lastScaleEvent[key] = time.Now()
}
}
func getMetricsDetails(hpa *autoscalingv2.HorizontalPodAutoscaler) string {
var details []string
for _, metric := range hpa.Spec.Metrics {
if metric.Type == autoscalingv2.ResourceMetricSourceType && metric.Resource != nil {
metricName := metric.Resource.Name
targetValue := ""
// 处理目标值
if metric.Resource.Target.AverageUtilization != nil {
targetValue = fmt.Sprintf("%d%%", *metric.Resource.Target.AverageUtilization)
} else if metric.Resource.Target.AverageValue != nil {
targetValue = metric.Resource.Target.AverageValue.String()
}
currentValue := ""
// 处理当前值
if len(hpa.Status.CurrentMetrics) > 0 {
for _, currentMetric := range hpa.Status.CurrentMetrics {
if currentMetric.Resource != nil && currentMetric.Resource.Name == metricName {
if currentMetric.Resource.Current.AverageUtilization != nil {
currentValue = fmt.Sprintf("%d%%", *currentMetric.Resource.Current.AverageUtilization)
} else if currentMetric.Resource.Current.AverageValue != nil {
currentValue = currentMetric.Resource.Current.AverageValue.String()
}
}
}
}
details = append(details, fmt.Sprintf("资源指标: %s, 当前值: %s, 目标值: %s", metricName, currentValue, targetValue))
}
}
if len(details) > 0 {
return fmt.Sprintf("指标详情: [%s]", stringJoin(details, ", "))
}
return "没有可用的指标详情"
}
func stringJoin(items []string, separator string) string {
result := ""
for i, item := range items {
if i > 0 {
result += separator
}
result += item
}
return result
//return strings.Join(items, separator)
}
func getTriggerConditions(hpa *autoscalingv2.HorizontalPodAutoscaler) string {
var conditions []string
for _, condition := range hpa.Status.Conditions {
if condition.Type == autoscalingv2.ScalingActive {
conditions = append(conditions, condition.Message)
}
}
return fmt.Sprintf("%v", conditions)
}
func checkScalingCompletion(hpa *autoscalingv2.HorizontalPodAutoscaler) {
ticker := time.NewTicker(10 * time.Second)
defer ticker.Stop()
for range ticker.C {
currentHPA, err := getLatestHPAStatus(hpa.Namespace, hpa.Name)
if err != nil {
continue
}
if currentHPA.Status.CurrentReplicas == currentHPA.Status.DesiredReplicas {
msg := fmt.Sprintf("HPA 扩容完成:\n"+
"服务: %s/%s\n"+
"当前副本数: %d\n"+
"时间: %s",
hpa.Namespace, hpa.Name,
currentHPA.Status.CurrentReplicas,
time.Now().Format("2006-01-02 15:04:05"))
//fmt.Println("HPA检测情况:", msg)
sendDingdingMessage(msg, "hpa扩容完成")
return
}
}
}
func getLatestHPAStatus(namespace, name string) (*autoscalingv2.HorizontalPodAutoscaler, error) {
var kubeConfig = "/root/.kube/config"
// 初始化 Kubernetes 客户端
config, err := clientcmd.BuildConfigFromFlags("", kubeConfig)
if err != nil {
panic(err.Error())
}
clientset, err := kubernetes.NewForConfig(config)
if err != nil {
panic(err.Error())
}
return clientset.AutoscalingV2().HorizontalPodAutoscalers(namespace).Get(context.TODO(), name, v1.GetOptions{})
}
func sendDingdingMessage(content string, eventType string) {
// 生成签名
timestamp := time.Now().UnixNano() / 1e6
sign := generateSign(timestamp)
// 构建请求 URL
webhookURL := fmt.Sprintf("%s×tamp=%d&sign=%s", dingdingWebhook, timestamp, sign)
// 构建消息体
msg := DingdingMsg{
Msgtype: "text",
Text: struct {
Content string `json:"content"`
}{
Content: content + "\n事件类型: " + eventType,
},
}
jsonBody, _ := json.Marshal(msg)
fmt.Println("发送钉钉消息:", msg.Text.Content)
resp, err := http.Post(webhookURL, "application/json", bytes.NewBuffer(jsonBody))
if err != nil {
fmt.Println("发送钉钉消息失败:", err)
return
}
defer resp.Body.Close()
}
func generateSign(timestamp int64) string {
stringToSign := fmt.Sprintf("%d\n%s", timestamp, dingdingSecret)
h := hmac.New(sha256.New, []byte(dingdingSecret))
h.Write([]byte(stringToSign))
return url.QueryEscape(base64.StdEncoding.EncodeToString(h.Sum(nil)))
}
func cleanupOldEvents() {
now := time.Now()
for k, t := range lastScaleEvent {
if now.Sub(t) > 5*time.Minute {
delete(lastScaleEvent, k)
}
}
}

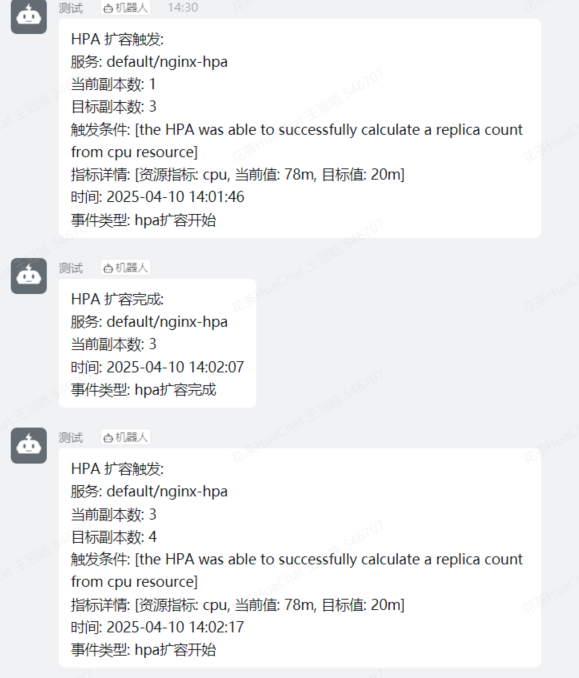

消息如下：
构建镜像
FROM golang:1.23 AS builder
WORKDIR /app
COPY . .
RUN CGO_ENABLED=0 GOOS=linux go build -o hpa-watcher .
FROM alpine:3.18
COPY --from=builder /app/hpa-watcher /app/
CMD ["/app/hpa-watcher"]部署到k8s
apiVersion: apps/v1
kind: Deployment
metadata:
name: hpa-watcher
spec:
replicas: 1
selector:
matchLabels:
app: hpa-watcher
template:
metadata:
labels:
app: hpa-watcher
spec:
serviceAccountName: hpa-watcher
containers:
- name: watcher
image: your-registry/hpa-watcher:v1
resources:
limits:
memory: "128Mi"
cpu: "100m"
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: hpa-watcher
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: hpa-watcher
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: hpa-watcher
subjects:
- kind: ServiceAccount
name: hpa-watcher
namespace: default
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: hpa-watcher
rules:
- apiGroups: ["autoscaling"]
resources: ["horizontalpodautoscalers"]
verbs: ["get", "list", "watch"]
